Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Additional Accessories: 1" Short Poly Pipe Nipple, 1" 90 Barbed Elbow, (3) 1" Hose Barbs, (4) 1" Hose Clamps, Anti-Drip Nozzle Spout, 1" Female to Male Coupler, 1" Shutoff Ball Valve, (2) PTFE Tape Rolls, Suction Hose: 1” X 9' EPDM Suction Hose, Discharge Hose: 1” X 12’ EPDM Hose, Nozzle: 1" Polypropylene Shutoff Ball Valve with Tip |
| Series Code | 115v-ac-mild-acids-solvents-pump-series |
| Series Name | 115V AC Mild Acids & Solvents Pump Series |
| Series Url | https://www.fillrite.com/115v-ac-mild-acids-solvents-pump-series |
Description

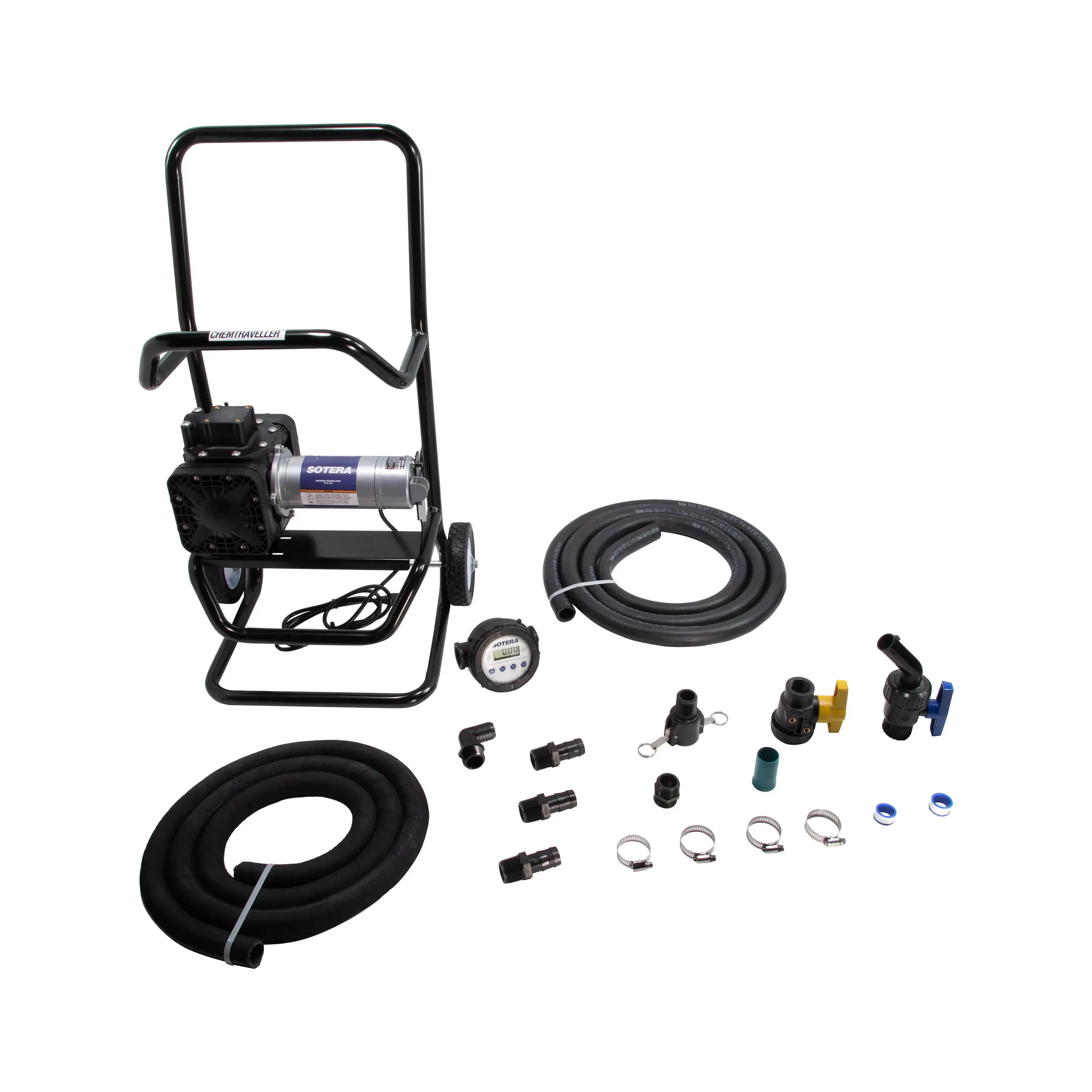

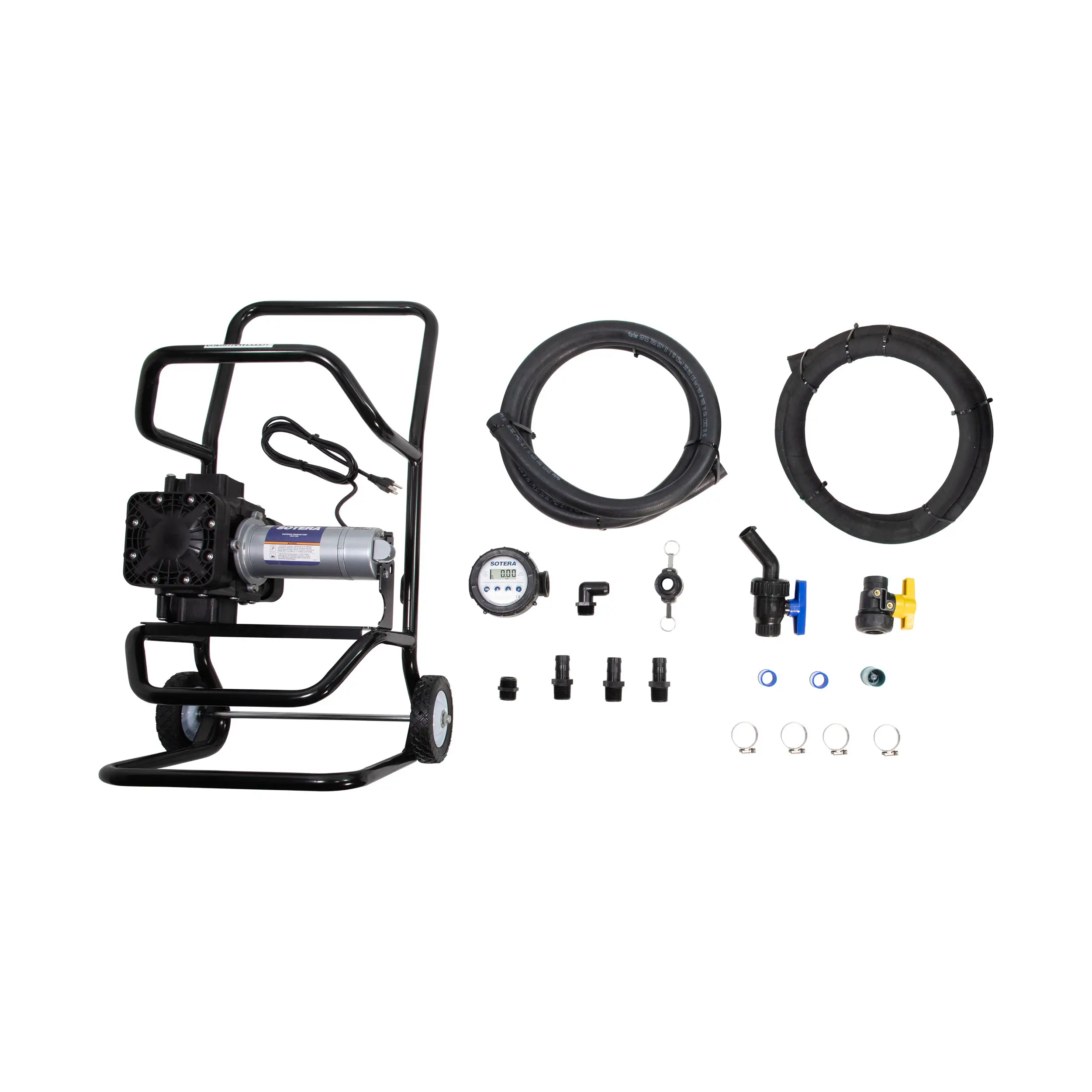

The Sotera SS495BMS4-HB1 model is a 115V AC transfer system designed for bulk transfer with a broad range of chemicals, including water-based acids and solvents. The SS495BMS4-HB1 is manufactured with a portable Chemtraveller? frame, ensuring hassle-free transportation to and from your fields. It also comes complete with a power cable, suction hose, discharge hose, Sotera 825 Digital Flow Meter, and other fittings.
Specifications
| Max Flowrate | 13 GPM / 49 LPM |
|---|---|
| Power Type | 115V AC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | Wheeled Chemtraveller® |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 2.5 A |
| Package Height x Width x Depth (in.) | 15 x 33.88 x N/A |
| Gross Weight (lbs.) | 55.65000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
