Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Additional Accessories: 1" Short Poly Pipe Nipple, 1" 90 Barbed Elbow, (2) 1" Hose Barbs, (2) 1" Hose Clamps, 1" NPT Check Valve, (2) PTFE Tape Rolls, Suction Pipe: 28" - 46" Polypropylene Telescoping Suction Pipe with Bellows, Discharge Hose: 1” X 12’ EPDM Hose, Nozzle: 1" Polypropylene Shutoff Ball Valve with Tip |
| Series Code | 115v-ac-mild-acids-solvents-pump-series |
| Series Name | 115V AC Mild Acids & Solvents Pump Series |
| Series Url | https://www.fillrite.com/115v-ac-mild-acids-solvents-pump-series |
Description

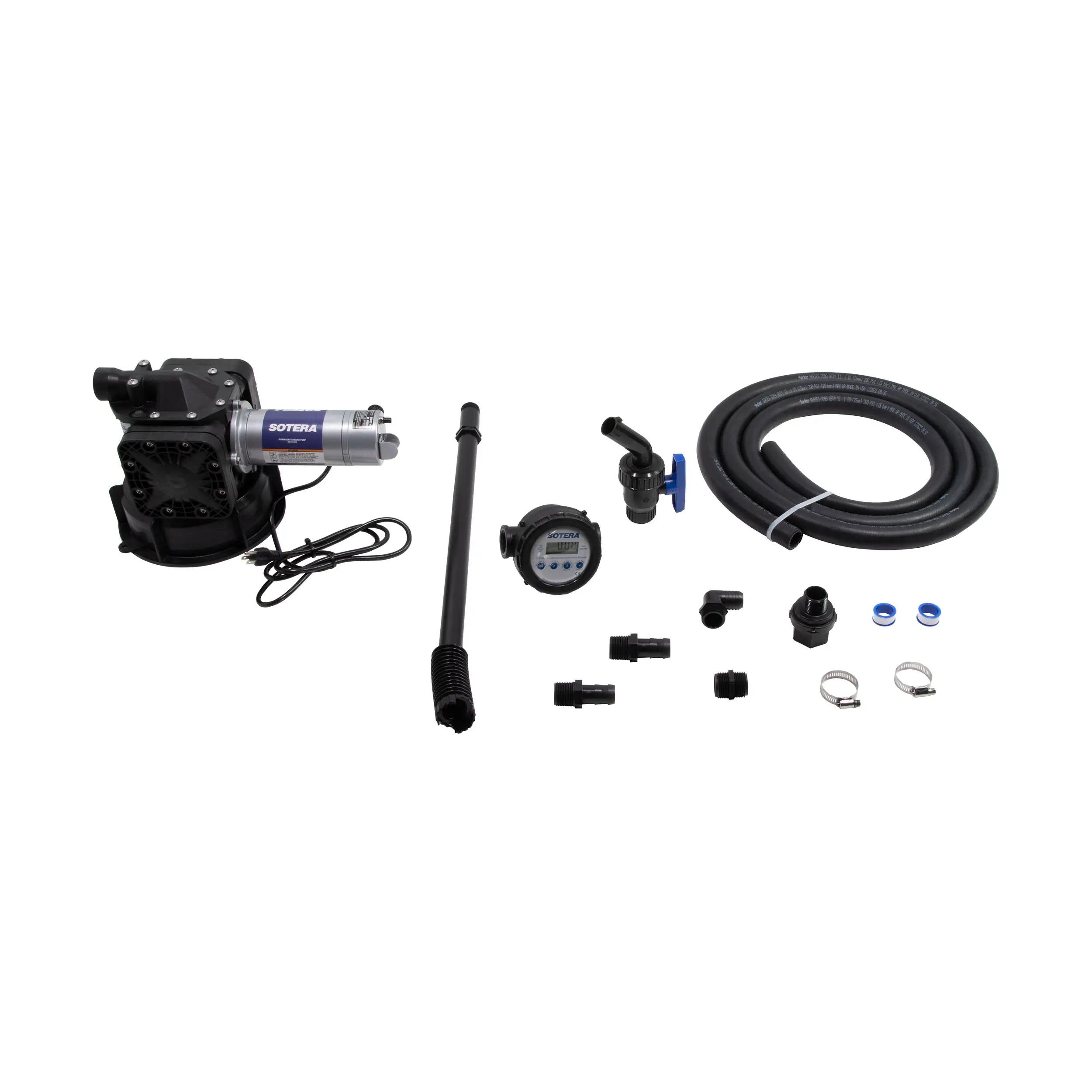

The Sotera SS497BMS0-PC1 model is a 115V AC transfer system designed for bulk transfer with a broad range of chemicals, including water-based acids and solvents. The SS497BMS0-PC1 is manufactured with a 9" recirculating cap, perfect for mixing and agitating fluids stored in totes. It comes complete with a power cable, suction pipe, Sotera 825 Digital Flow Meter, discharge hose, nozzle, and other fittings.
Specifications
| Max Flowrate | 13 GPM / 49 LPM |
|---|---|
| Power Type | 115V AC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | Mix-N-Go |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 2.5 A |
| Package Height x Width x Depth (in.) | 12.13 x 21.75 x N/A |
| Gross Weight (lbs.) | 55.65000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
