Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Cable Length (ft): 6.6, Cable Gauge (GA): 18, Cable Connection: NEMA-15 |
| Series Code | 115v-ac-water-based-chemicals-pump-series |
| Series Name | 115V AC Water-Based Chemicals Pump Series |
| Series Url | https://www.fillrite.com/115v-ac-water-based-chemicals-pump-series |
Description

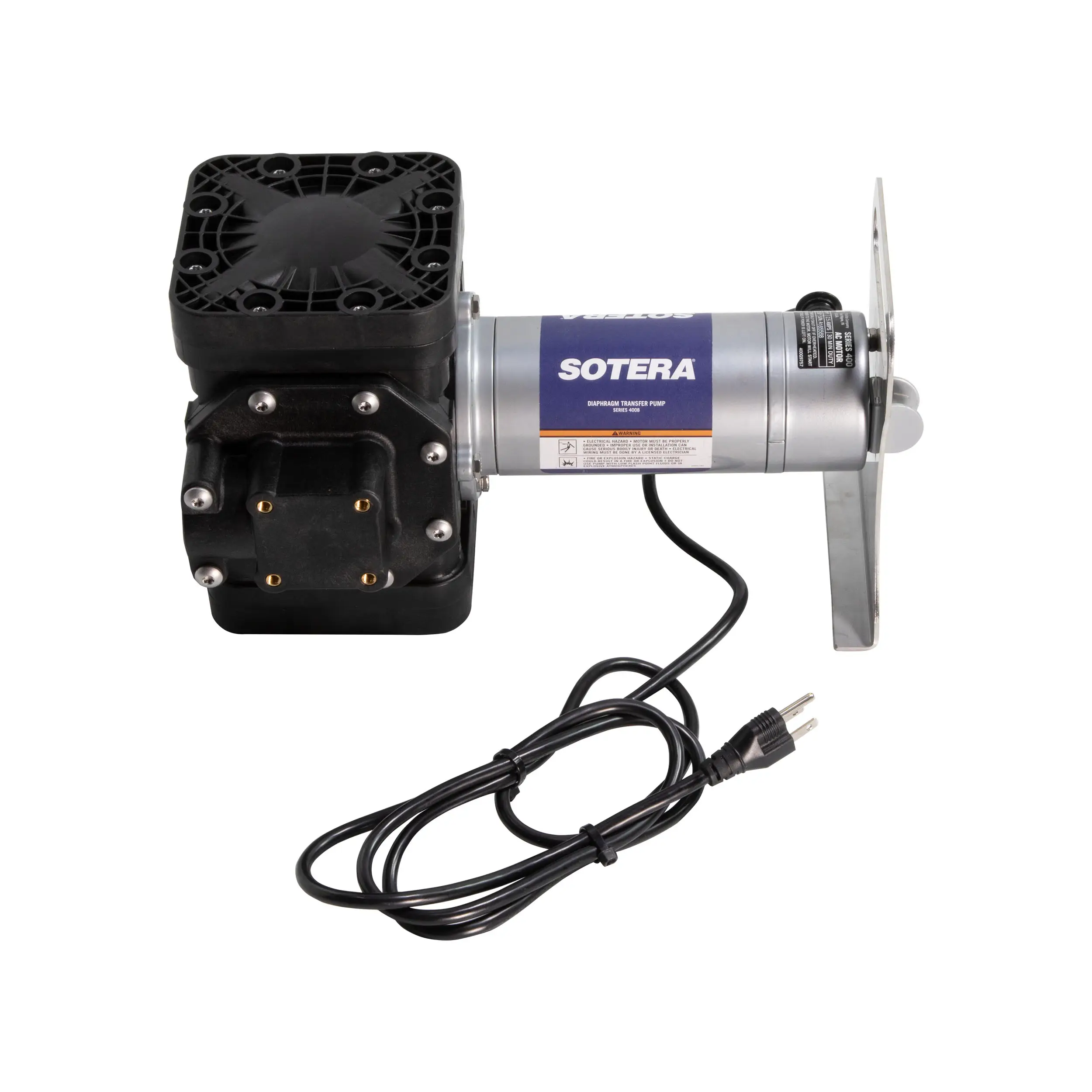

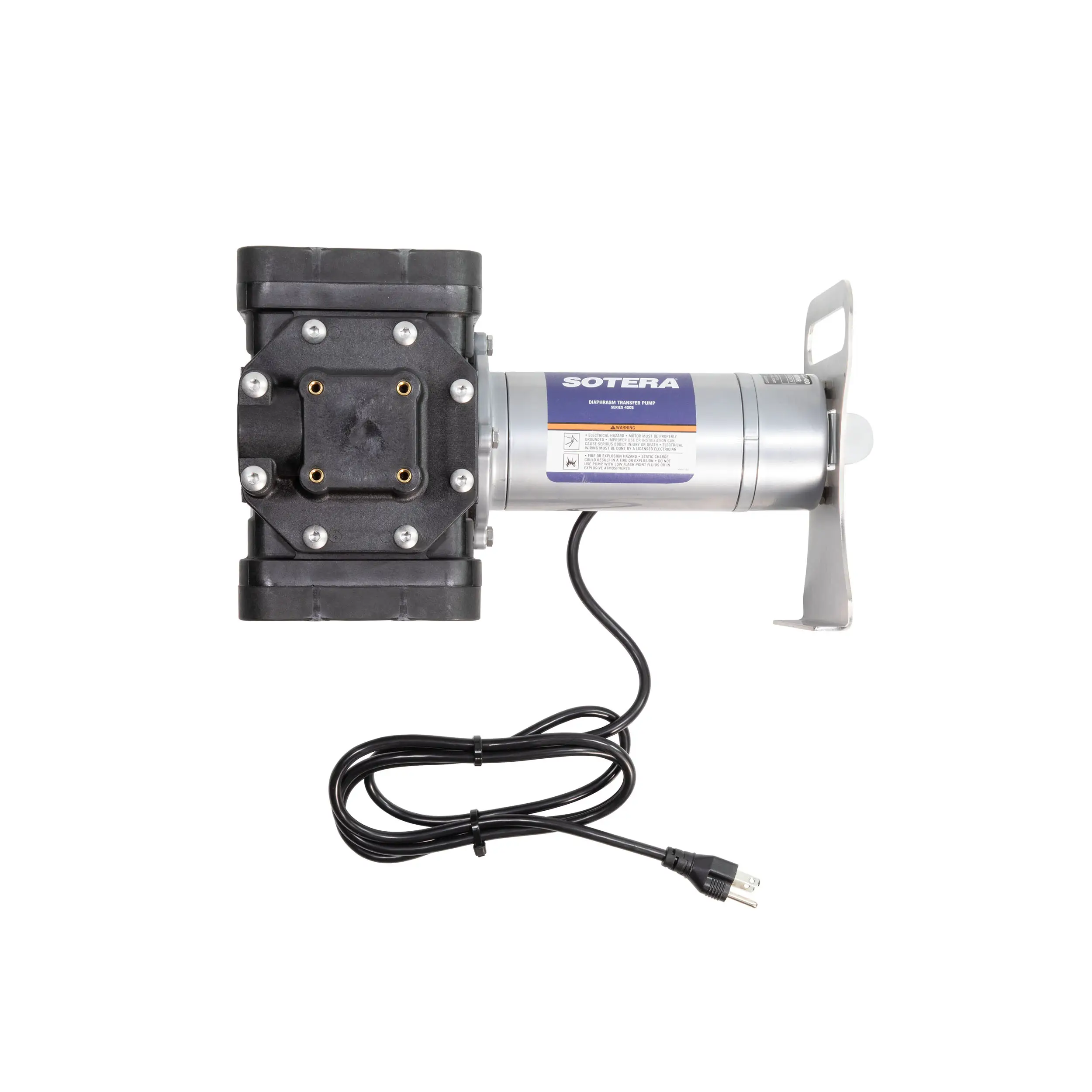

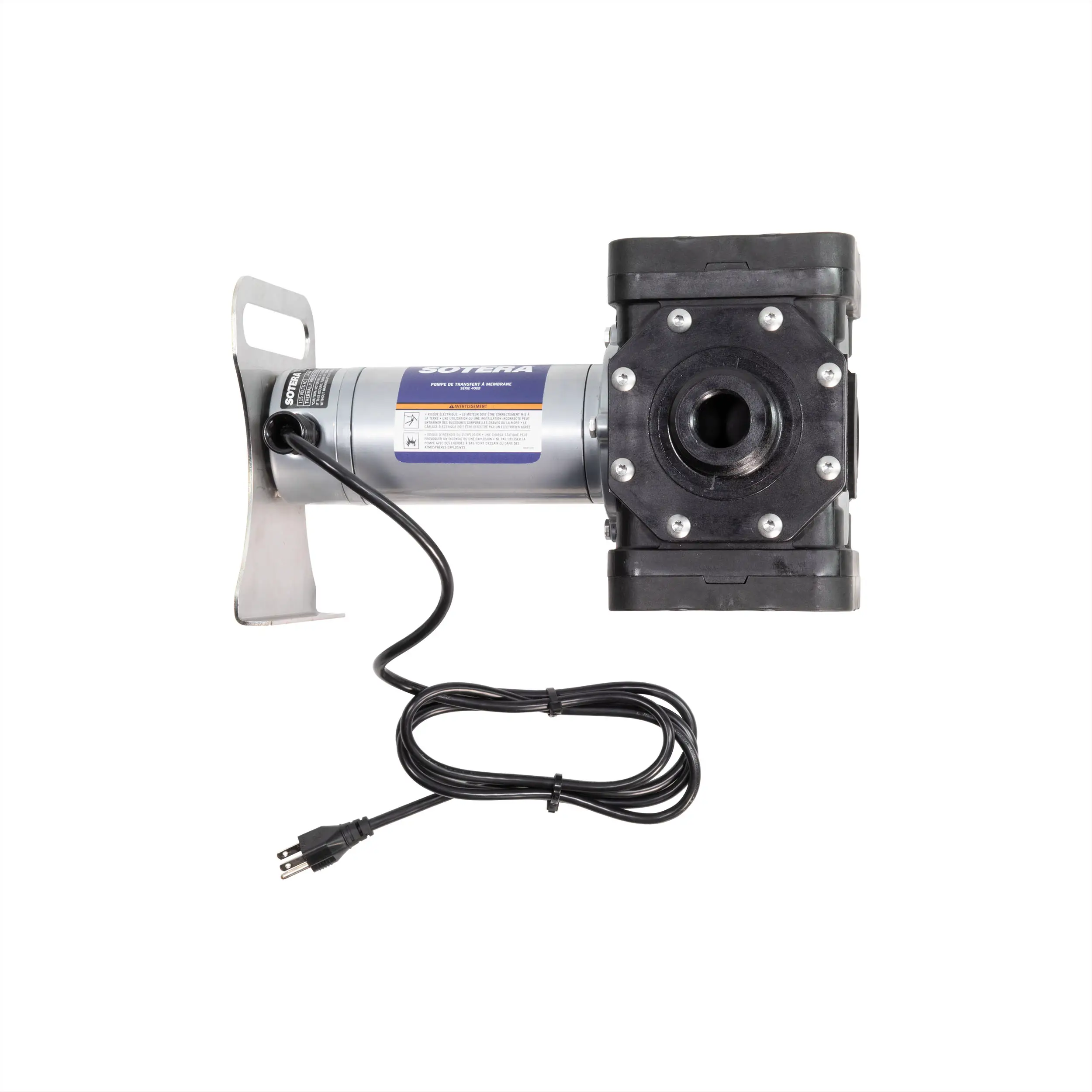

The SS460BX731 model is a 115V AC chemical transfer system. This Sotera bundle includes a motor bracket, polypropylene suction pipe, and additional chemical fittings.
Specifications
| Max Flowrate | 13 |
|---|---|
| Power Type | 115V AC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | Pump-N-Go |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 2.5 A |
| Assembled Product Height x Width x Depth (in.) | 8.75 x 14 x 5.5 |
| Assembled Product Weight (lbs.) | 18.3 |
| Package Height x Width x Depth (in.) | 14.31 x 16.38 x 12.06 |
| Gross Weight (lbs.) | 21.30000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
