Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller®, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Additional Accessories: (2) 1" Short Poly Pipe Nipple, 1" NPT Poly Street Elbow, 1" 90 Barbed Elbow, (3) 1" Hose Barbs, (4) 1" Hose Clamps, 2" to 1" Poly Reducer Bushing, 2" X 1" Double Tap NPT Bushing, 2" Male Adapter-Male Threaded, 1" Male Adapter-Male Threaded, 2" Female Coup, Cable Length (ft): 6.6, Cable Gauge (GA): 18, Cable Connection: NEMA-15, Suction Pipe: 28" - 46" Polypropylene Telescoping Suction Pipe with Bellows, Suction Hose: 1” X 9' EPDM Suction Hose, Discharge Hose: 1” X 12’ EPDM Hose, Nozzle: 1" Polypropylene Shutoff Ball Valve with Tip |
| Series Code | 115v-ac-water-based-chemicals-pump-series |
| Series Name | 115V AC Water-Based Chemicals Pump Series |
| Series Url | https://www.fillrite.com/115v-ac-water-based-chemicals-pump-series |
Description

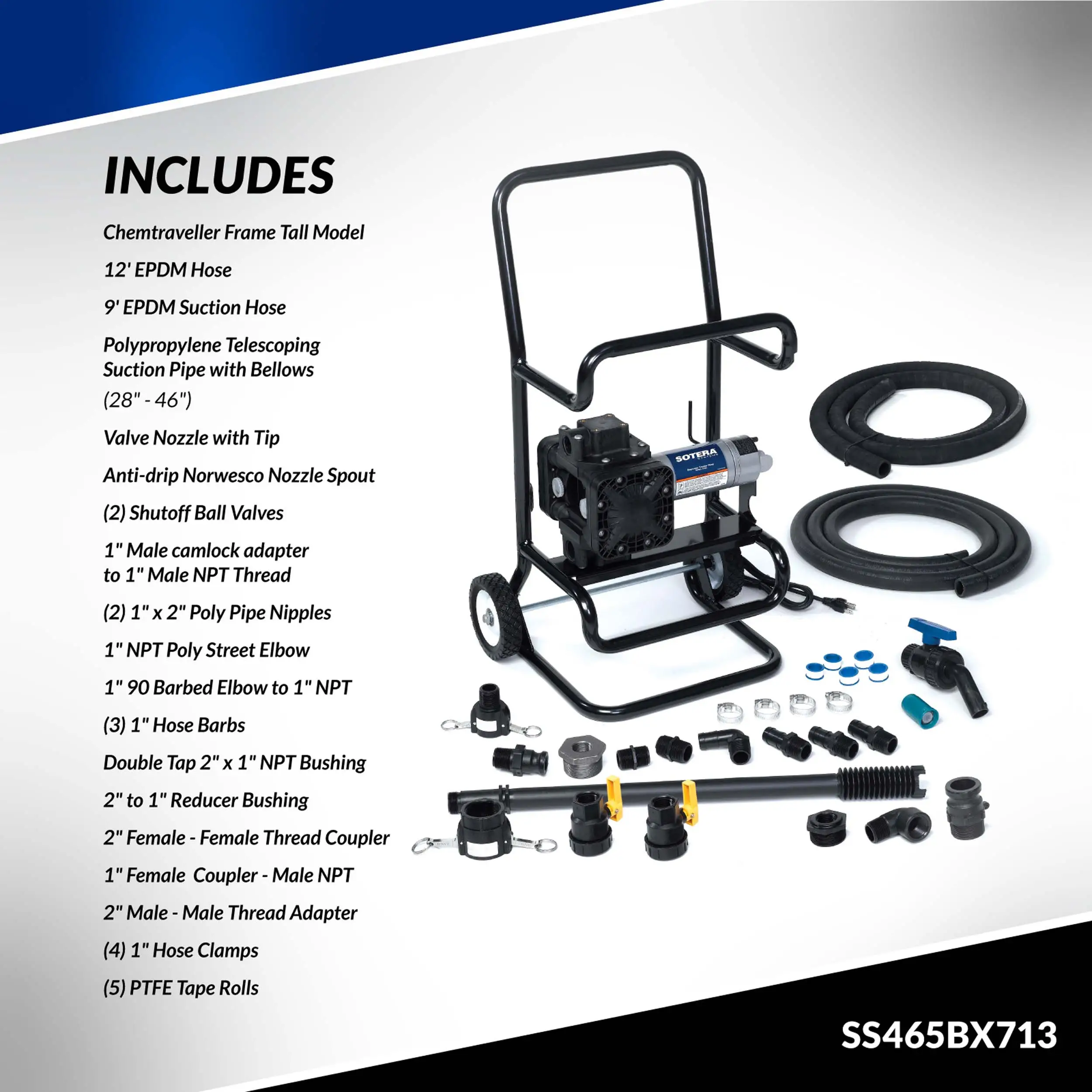

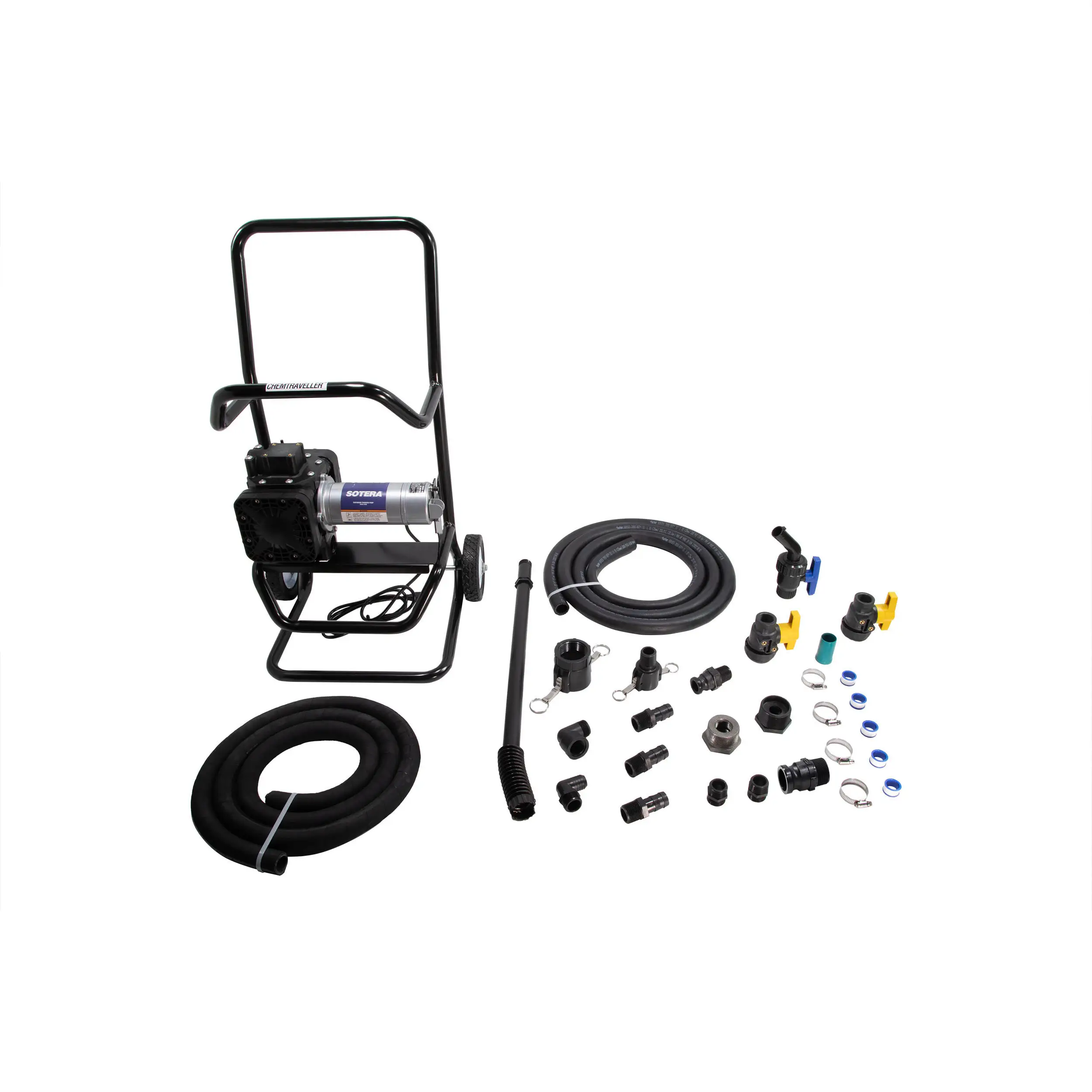

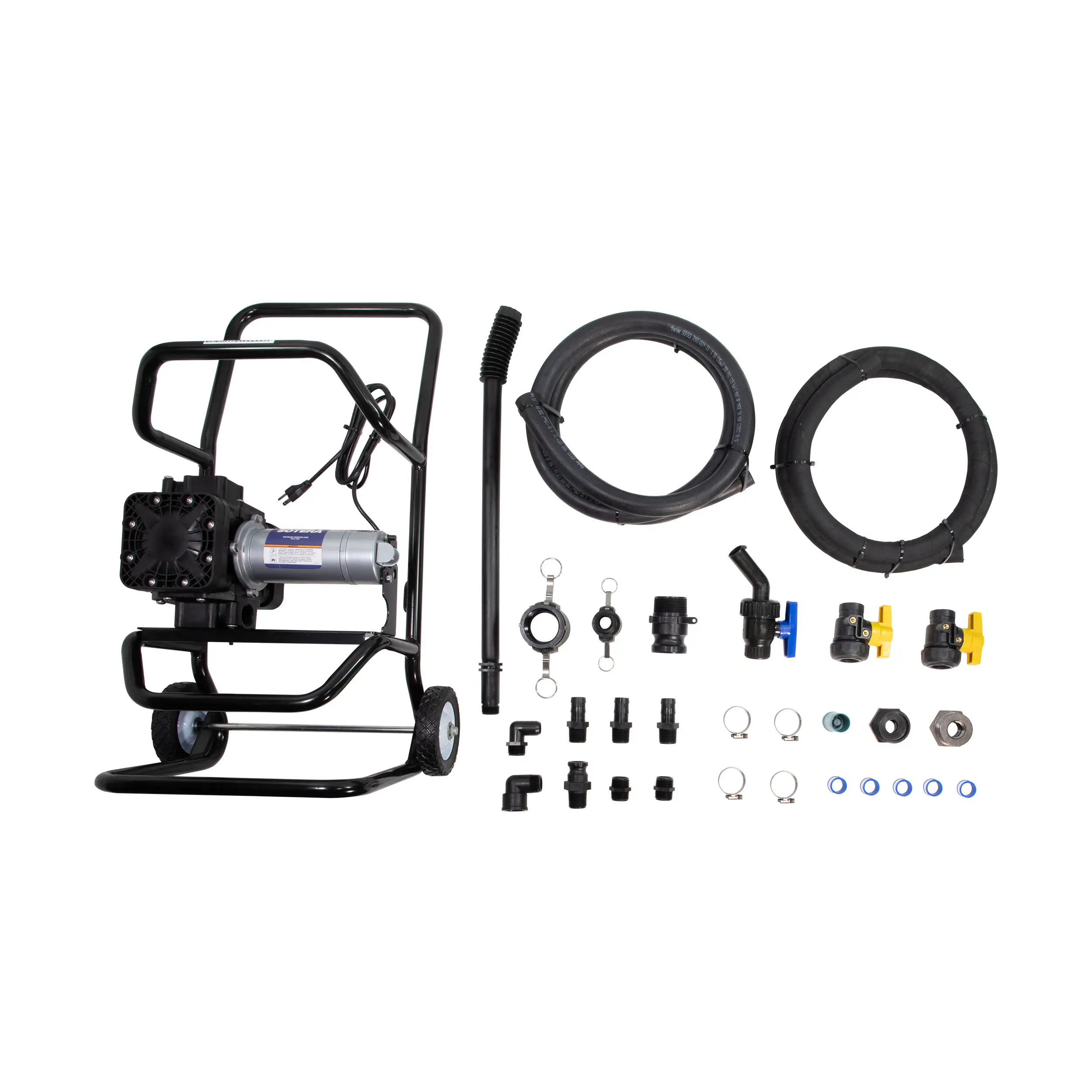

The SS465BX713 model is a 115V AC Chemtraveller® chemical transfer system. This Sotera Chemtraveller® bundle includes a portable frame, polypropylene nozzle, Norwesco® anti-drip nozzle tip, and additional chemical fittings.
Specifications
| Max Flowrate | 13 |
|---|---|
| Power Type | 115V AC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | Wheeled Chemtraveller® |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 2.5 A |
| Assembled Product Height x Width x Depth (in.) | 33.0 x 19.9 x 15.2 |
| Assembled Product Weight (lbs.) | 29.6 |
| Package Height x Width x Depth (in.) | 15 x 33.88 x 17 |
| Gross Weight (lbs.) | 52.60000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
