Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Additional Accessories: 1" Short Poly Pipe Nipple, 1" NPT Poly Street Elbow, (4) 1" Hose Barbs, (4) 1" Hose Clamps, 2" to 1" Poly Reducer Bushing, 2" Female Coupler, Anti-Drip Nozzle Spout, 1" Shutoff Ball Valve, (4) PTFE Tape Rolls, Cable Length (ft): 6.6, Cable Gauge (GA): 18, Cable Connection: NEMA-15, Suction Hose: 1" X 39" EPDM Suction Hose, Discharge Hose: 1” X 12’ EPDM Hose, Nozzle: 1" Polypropylene Shutoff Ball Valve with Tip |
| Series Code | 115v-ac-water-based-chemicals-pump-series |
| Series Name | 115V AC Water-Based Chemicals Pump Series |
| Series Url | https://www.fillrite.com/115v-ac-water-based-chemicals-pump-series |
Description

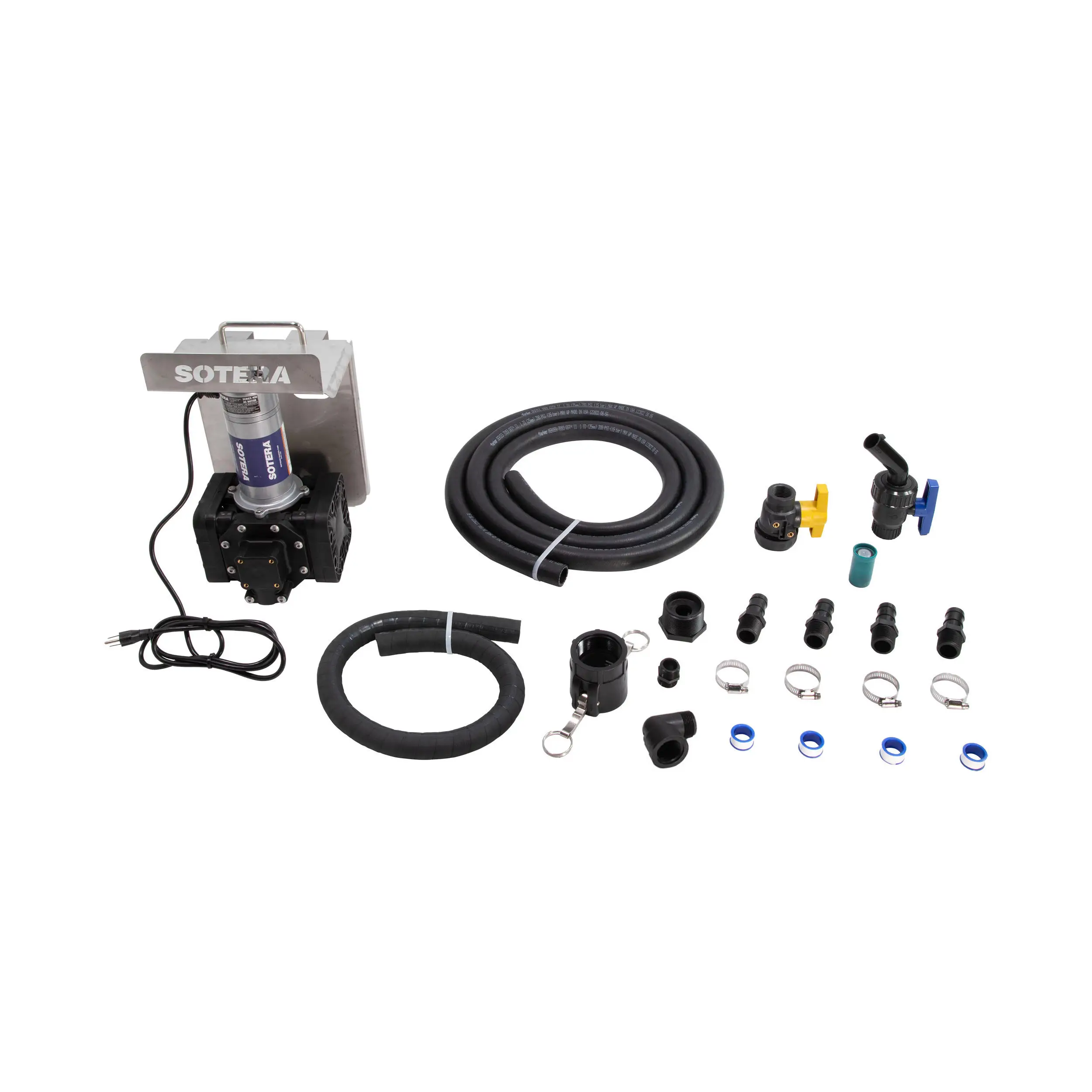

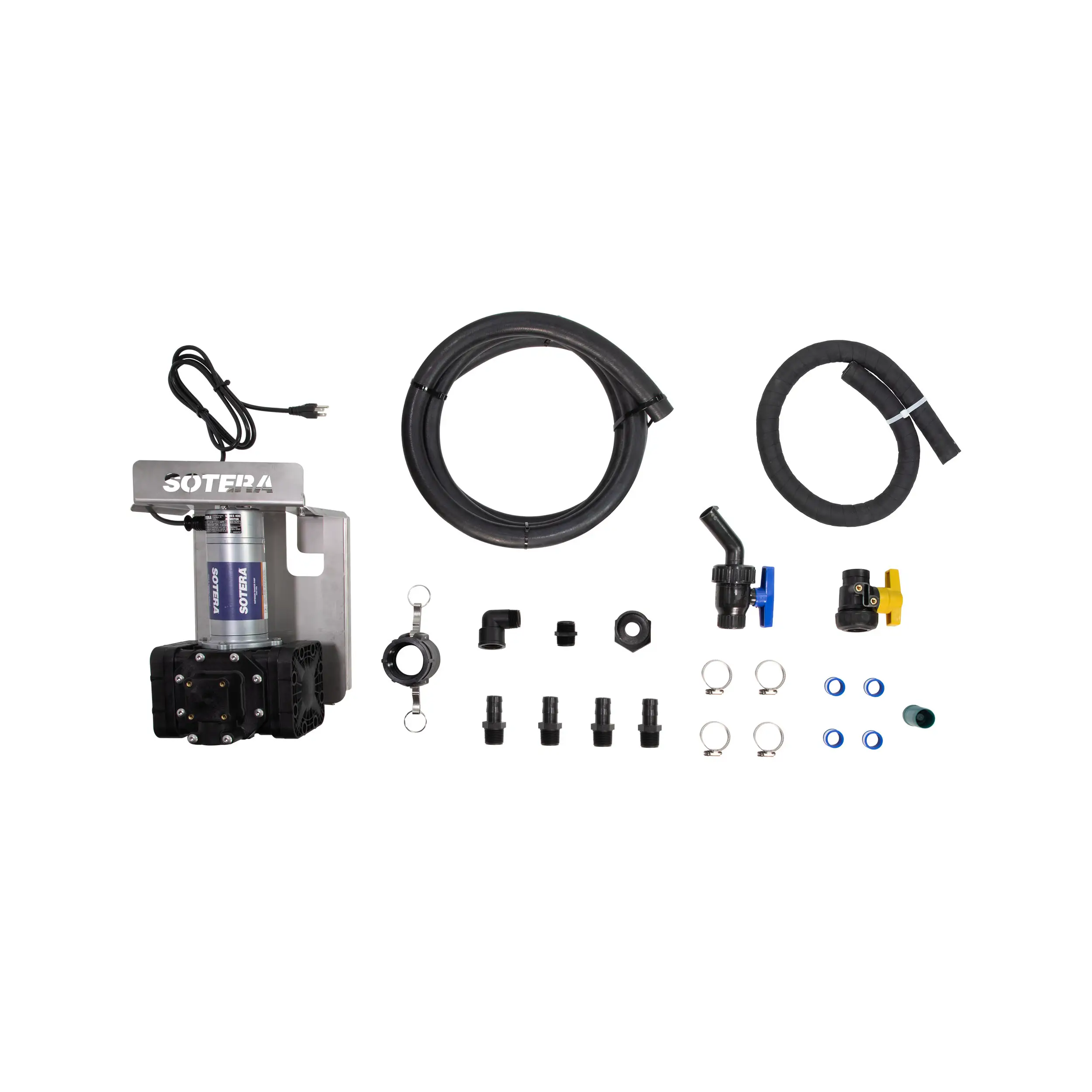

The SS470B model is a 115V AC IBC tote chemical transfer system. This Sotera IBC tote bundle includes a stainless steel IBC tote mount, suction hose, discharge hose, polypropylene nozzle, and additional chemical fittings.
Specifications
| Max Flowrate | 13 |
|---|---|
| Power Type | 115V AC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | IBC Tote Bracket |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 2.5 A |
| Assembled Product Height x Width x Depth (in.) | 8.5 x 16.5 x 11 |
| Assembled Product Weight (lbs.) | 21.6 |
| Package Height x Width x Depth (in.) | 12.13 x 21.75 x 20.88 |
| Gross Weight (lbs.) | 38.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
